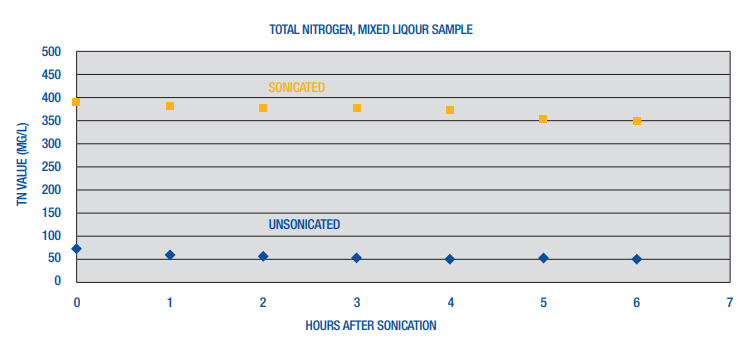

Sonication improved TN recovery by 5 42% compared to a mechanically
agitated sample. Sampling was via a 0.8 mm ID autosampler probe, using
a Thermalox TN analyser. This directly injects the sample aliquot into a
catalytic furnace.
USER FRIENDLY WINDOWS™ PLATFORM SOFTWARE ALLOWS THE 8
1 00 S TO BE SET UP FOR DIFFERENT VIAL RACK GEOMETRIES AND
METHODS.
SERCON CAN PROVIDE SOFTWARE PACKAGES TO INTEGRATE THE
8100S WITH A MAIN ANALYSER
| Vial processing time | User programmable, typically <20s |
| Maximum Vial Rack Size | 300x 3 00. Universal Mounting |
| Power Requirements | 240/220/ 110 VAC, 50/60 Hz, 500w |
| Noise @ 1.0 m | <6 5 dB |
| Sonication Power | 200watts |
| Probe Diameter | 1/8”, Titanium |
| Dimensions | 575 x 430 x 480 DWH |
| Weight | 35 kg |
| Probe Rinsing | Automatic, between vials |
| Accuracy (mm) | |
|---|---|
| Horizontal (XY) | <0.3 |
| Vertical | <0.5 |
| Positioning precision (mm) | |
|---|---|
| Horizontal (XY) | <0.1 |
| Vertical | <0.2 |
| Arm Speeds | |
|---|---|
| Horizontal (XY) | 0.1- 20.0 cm/sec |
| Vertical | 0.1- 8.1 cm/sec |
